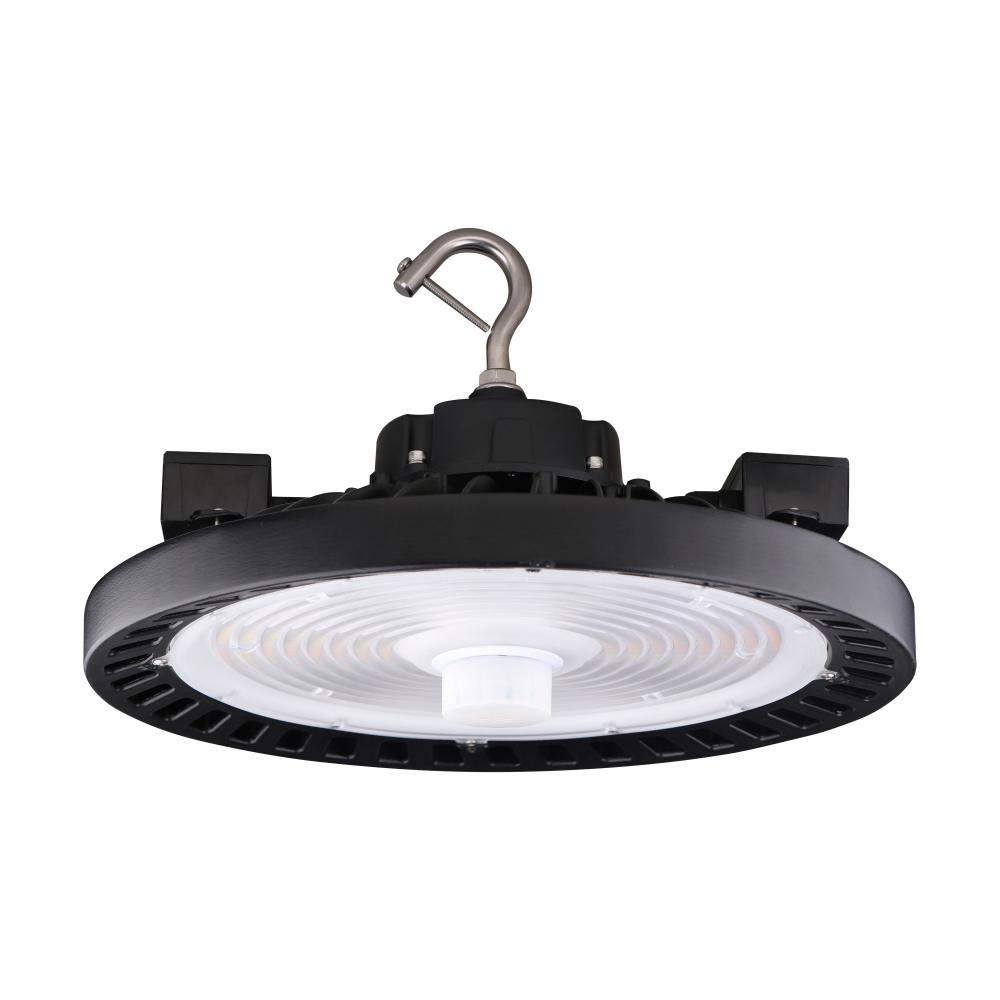

LED UFO High Bay; CCT Selectable 3K/4K/5K and Wattage Selectable 150W/175W/200W; 50,000 hours (65/771R1) by Nuvo
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
242
00
/
/ 1
($242.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
65/771R1
Dimensions:
Height: 8.86"
Width: 14.57"
Black
Availability:
- Manufacturer is currently Out Of Stock.
- This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Recommended Items
Description
Details
Downloads
LED UFO High Bay; CCT Selectable 3K/4K/5K and Wattage Selectable 150W/175W/200W; 50,000 hours working life; Black Finish
Category:
Utility
Subcategory:
Other Utility
Finish:
Black
Style:
Traditional
Option:
LED
, Prop 65
Category:
Hi-Bay
Sub Category:
UFO
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Diameter:
14.57
Dimmable:
Yes-Dimmable
Each Height:
8.109999999999999
Each Length:
17.4
Each Width:
17.4
Lumens:
22200L-28800L
Tariff Code:
9405.40.9000
Warranty:
5 Year Limited - Fixtures
Wire Length:
72
Amps:
1.500-0.542/1.750-0.632/2.000-0.722A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
90
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Malaysia
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
1.4209
Each Quantity:
1
Efficacy:
148.00/145.71/144.00 LPW
FCC Compliant:
Yes
Feature 1:
Wattage and CCT Selectable
Feature 2:
Integrated Sensor Port
Feature 3:
IP65
Feature 4:
6KV Surge Protection
Feature 5:
0-10V Dimming
Feature 6:
50,000 Hours
Feature 7:
5 Year warranty
Finish Family:
Black
HID Equiv:
400W/450W
Housing Color:
Black
Impact Rating (IK):
IK08
Incandescent Equivalent:
1000W/1500W/2000W
Indoor Outdoor:
Indoor
IP Rating:
IP65
JA8 Compliant:
No
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Long Description:
The Nuvo 65-771R1 wattage and CCT selectable LED high bay UFO can meet all your lighting needs. This dimmable bulb comes in a black finish made of die cast aluminum with a polycarbonate lens. This durable LED fixture has a 90 degree beam spread and deliver
Material:
Die-Cast Aluminum
Mounting Procedure:
Ceiling
NSF Approved:
Yes
Operating Temp:
-40C (-40F) to +50C (+122F)
Order In Multiples Of:
1
Pack Type:
Box
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Introducing our newest wattage and CCT selectable UFO. With a wattage selectability of 150W/175W/200W and CCT selectability of 3000K/4000K/5000K, this fixture can meet all your lighting needs. Other features include an integrated sensor port for easy field
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
LED UFO HIGHBAY CCT & WATT ADJ
Sloped Ceiling Compatible:
No
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
Yes
Weight Lb.:
9.23
Manufactured By:
Nuvo
